Goal: routing clock sources to the microcontroller output pin (MCO1)
High-speed internal (HSI) clock is 16MHz
High-speed external (HSE) clock is 8MHz (very precise)

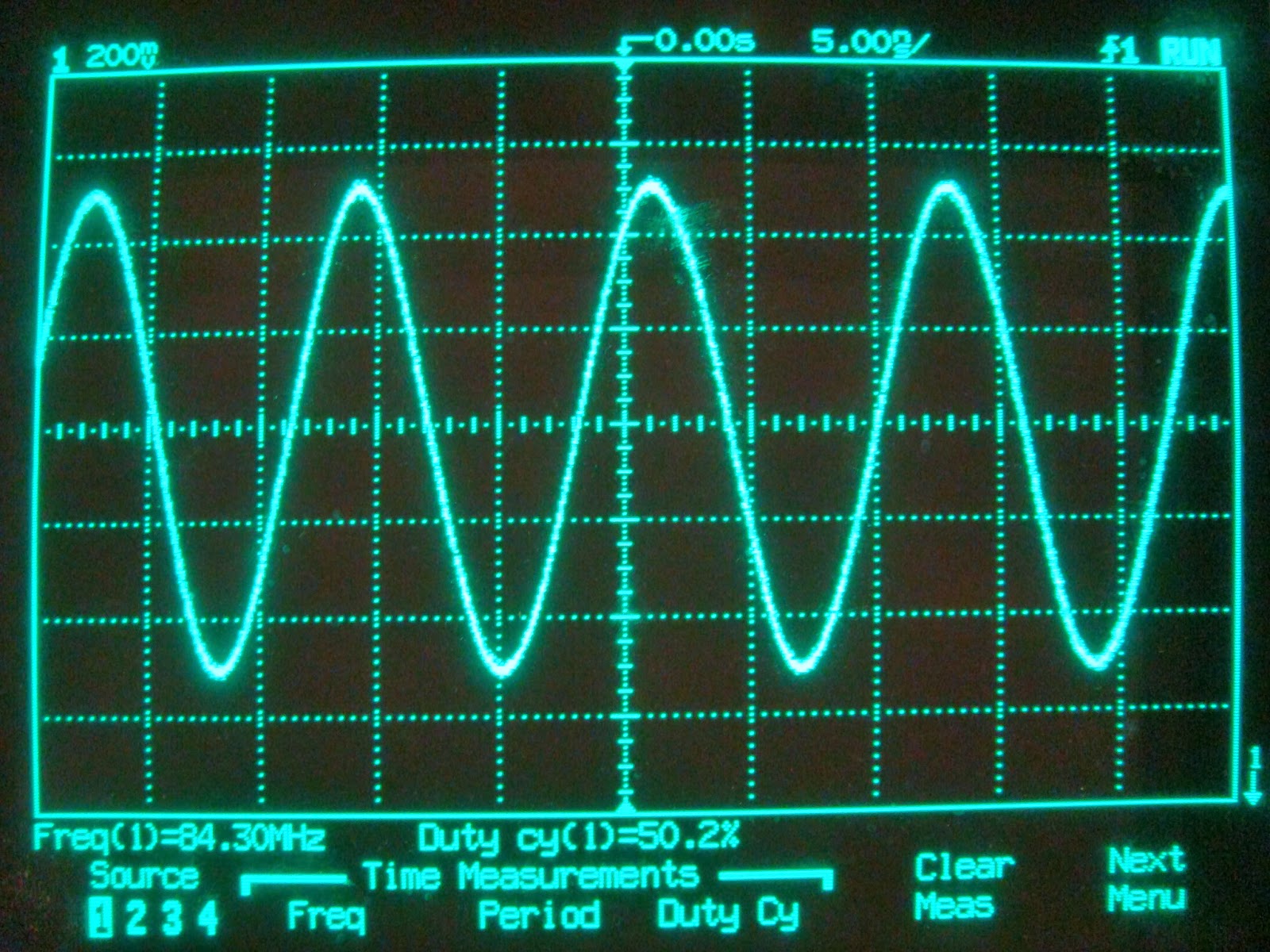

PLL CLK is configured to be 84MHz because I have a 100MHz oscilloscope (unfortunately can't visualize the max 168MHz)
#include <stm32f4xx.h> #include "mcu_config.h" int main(void) { GPIO_config(); // Initializing and clocking PA.8 RCC_MCO1Config(RCC_MCO1Source_HSI, RCC_MCO1Div_1);
// RCC_MCO1Config(RCC_MCO1Source_HSE, RCC_MCO1Div_1); // RCC_MCO1Config(RCC_MCO1Source_PLLCLK, RCC_MCO1Div_1); while(1) { } }
